Design for Manufacturing.

Smith writes the CAD and runs the simulation. Scrapyard ships the part. One platform from requirements to your doorstep.

Try Smith now Read the manifesto

scroll ↓

How Smith works

The distance between requirements and object, collapsed.

Describe

You describe the part in natural language and annotate the geometry the way you would sketch on a napkin. The agent writes the CAD, with Python as the source of truth.

Session: cooling jacket

Wrap a copper cooling jacket around the engine liner. Add an inlet port and bolt it down at the top.

On it — I'll build the jacket around the liner, add the inlet port and bolt holes, and mark the inlet face so we can pressure-test it next.

# build the jacket from your description
jacket = revolve(liner_profile, Axis.Z)
jacket += inlet_port
jacket -= bolt_holes
tag(inlet_face, "inlet")

Simulate

Suggest a load case and Smith simulates it in real time. GPU-accelerated structural and CFD analysis run while the design takes shape.

Build real

Fasteners and hardware come from live supplier catalogues, never unnecessarily built from scratch. When it's right, publish an immutable version, with geometry you can actually order.

Parts library

M8 socket head, A286

93395A118M8 × 1.25, 30 mm socket head, A286 superalloyIN STOCK

98956A103M8 copper sealing washerIN STOCK

91290A150M8 × 1.25 hex nut, A286 superalloyIN STOCK

50785K213AN6 37° flare inlet fitting, 316 SS2-DAY

9464K37Viton O-ring, 12 mm ID × 2 mmIN STOCK

5239K64PTFE-lined coolant hose, −6 AN3-DAY

CADGenBench

The best-in-class harness.

CADGenBench hands an agent a real engineering drawing and asks for the finished STEP file, scored against private ground truth for watertight validity, shape similarity, mating interfaces, and topology. Smith's harness, the same agent, skills, and build loop you get in the app, posts the highest generation score of any harness, clearing every frontier baseline.

CADGenBench leaderboard →

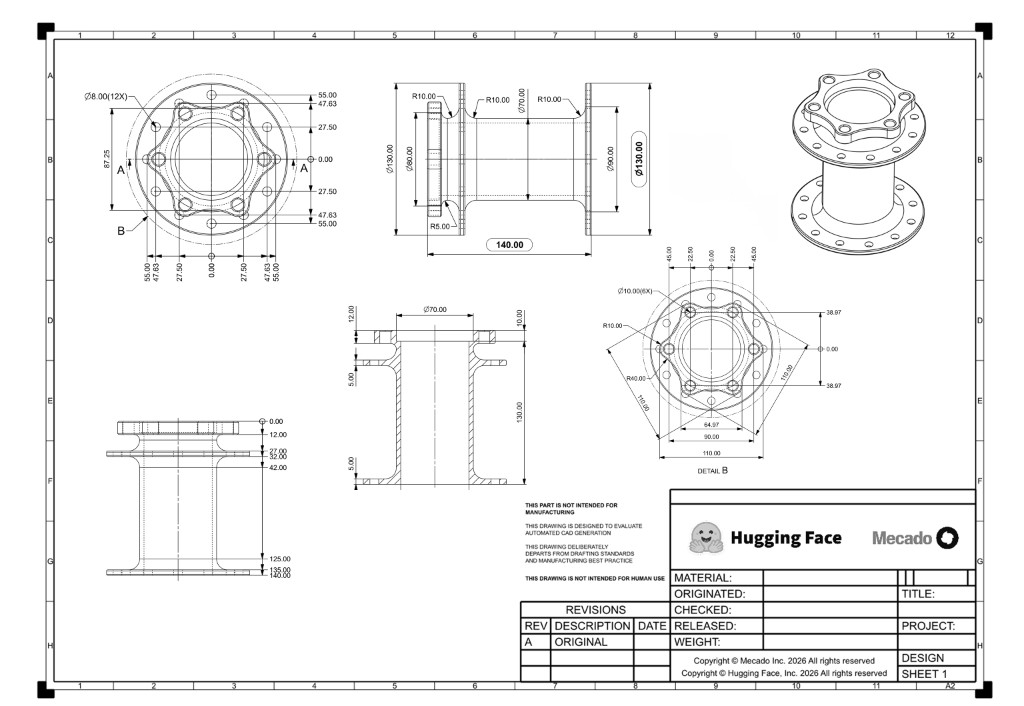

Drawing in · fixture 132

CADGenBench fixture 132, engineering drawing of a flanged spool

Smith output

WATERTIGHT ✓ INTERFACES ✓ TOPOLOGY ✓

HarnessGeneration scoreValid

Smith v1 (Arche)0.4119100%

Claude Fable 5 baseline0.37396%

GPT-5.5 build123d xhigh-r50.372100%

GPT-5.5 build123d v20.345n/a

Claude Opus 4.8 baseline0.31595%

81 fixtures · drawings and edits → STEP · scored on the official Space

DFM mode

Designed for the machine that makes it.

Flip Smith into DFM mode and every part is shaped by how it will actually be made. For 3D printing, the orientation solver ranks twenty candidate build directions and checks overhangs, bridging, minimum walls, and build-volume fit, with every check a pass, warn, or fail.

For sheet metal, Smith computes the flat pattern and the bend table with per-material K-factors, and exports a layered DXF ready for the laser, the waterjet, or the press brake.

Scrapyard

Closes the loop between the part you modeled and the part that ships to your doorstep.

Scrapyard is the marketplace and discovery layer wrapped around Smith. Every published part is an immutable snapshot with a live 3D preview. Browse what's trending, praise what's good, and remix anything: deep-clone a design into your own project and keep editing.

The parts are real components from real supplier catalogues, so every object becomes a base file anyone can fork, customize, and reorder.

One day soon, in a hangar somewhere, someone is going to walk in with a laptop, fire up a Smith file, and walk out with an X-wing.

Arche Industries. Smith. Scrapyard. Build anything.

Try Smith now
